[[mcs-ln2sps]]

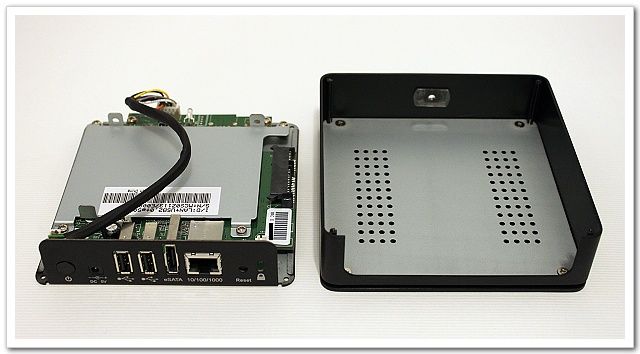

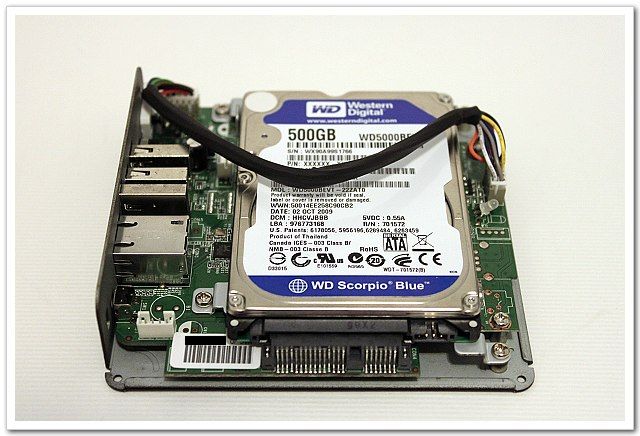

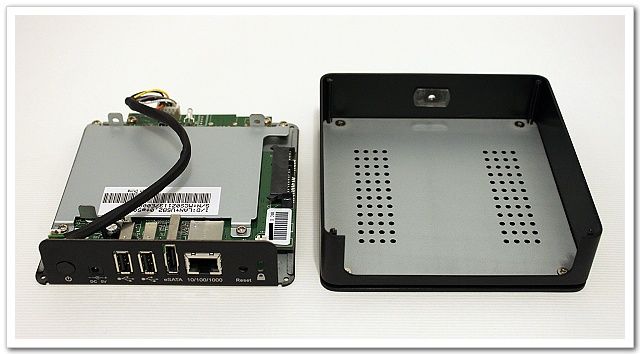

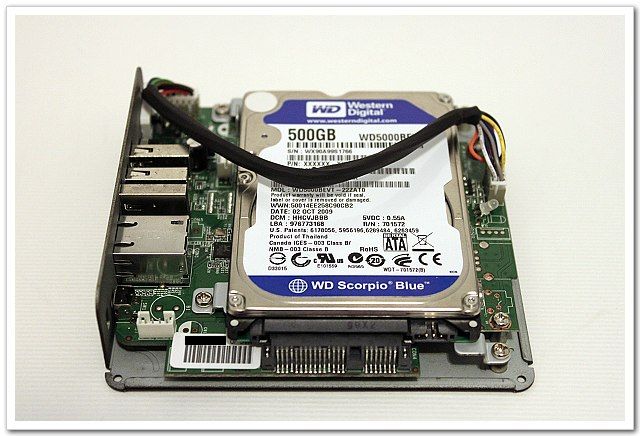

圖片

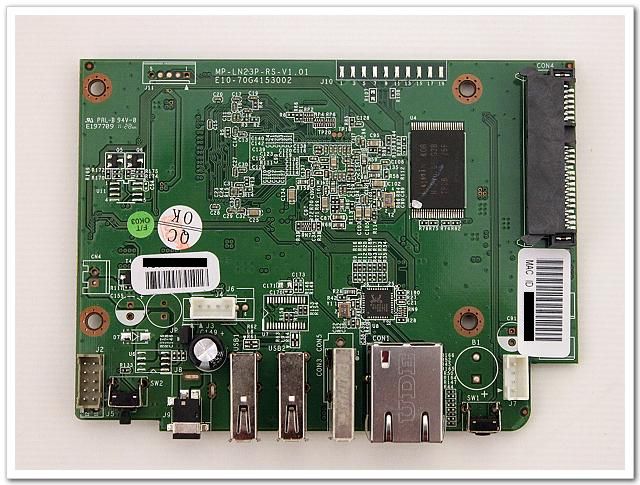

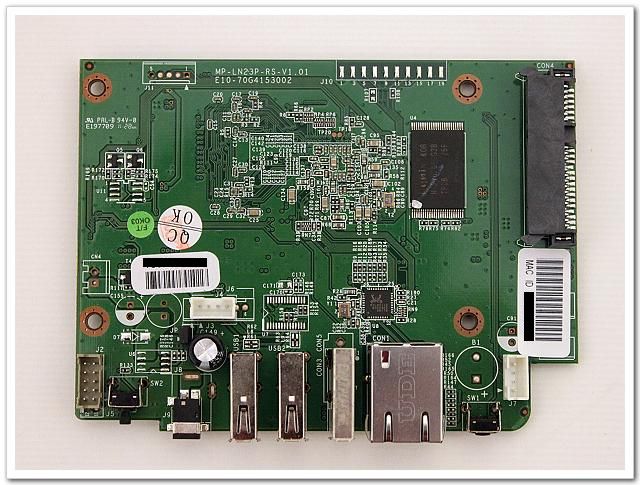

主要元件

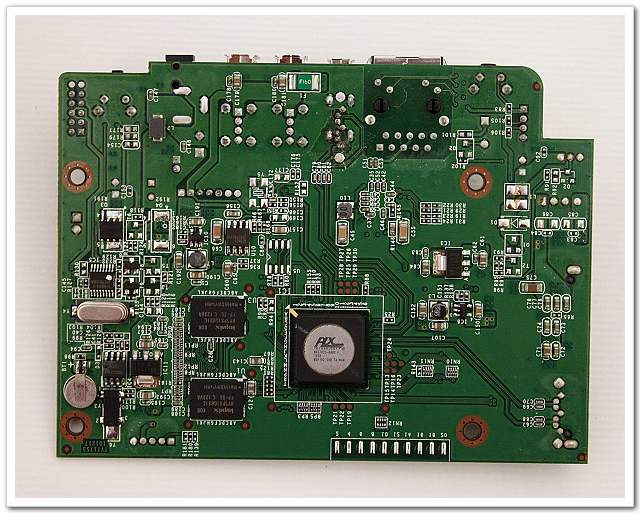

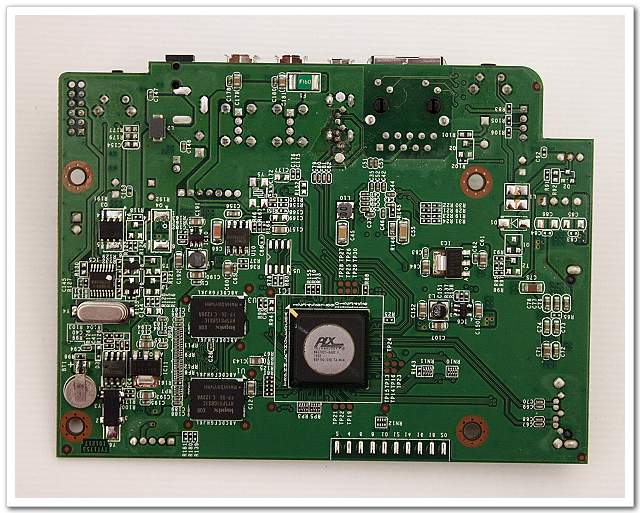

- CPU: PLX NAS7821
- NAND: 海力士 HY27UF082G2B, 256MB
- RAM: 海力士 HY5PS1G831C 二顆, 共256MB
- PHY: 昱瑞 RTL8211D
- RTC: 意法半導體 M41T0
訊息
Stage-1 Bootloader 一 8月 30 10:55:36 CST 2010
Attempting to set PLLA to 700MHz ...
plla_ctrl0 : 0x0000000A
plla_ctrl1 : 0x000E0000
plla_ctrl2 : 0x001B01A0
plla_ctrl3 : 0x00000016
PLLA Set
Setup memory, testing
Reading NAND, Image 0
Hdr len: 0x0001AB60
Hdr CRC: 0xAF5314CA
OK
U-Boot 1.1.2 (Mar 2 2011 - 10:36:51)
U-Boot code: 60D00000 -> 60D1AB60 BSS: -> 60D1F218
RAM Configuration:
Bank #0: 60000000 256 MB
SRAM Configuration:
64KB at 0x50000000
NAND:256 MiB
*** Warning - bad CRC, using default environment
In: serial
Out: serial
Err: serial
Setting Linux mem= boot arg value
Reading upgrade flag from NAND address 0x01ec0000 : 0
Hit any key to stop autoboot: 0
Extinguish LED
Loading from device 0: 256MiB 3,3V 8-bit (offset 0x440000)
Image Name: Linux-2.6.31.14-fast-20110422
Image Type: ARM Linux Kernel Image (uncompressed)
Data Size: 3078316 Bytes = 2.9 MB
Load Address: 60008000
Entry Point: 60008000
## Booting image at 60500000 ...
Image Name: Linux-2.6.31.14-fast-20110422
Image Type: ARM Linux Kernel Image (uncompressed)
Data Size: 3078316 Bytes = 2.9 MB
Load Address: 60008000
Entry Point: 60008000
Verifying Checksum ... OK
OK
Starting kernel ...
Uncompressing Linux..................................................................................................................................................................................... done, booting the kernel.
Linux version 2.6.31.14-fast-20110422 (root@thom) (gcc version 4.4.2 20091019 (Red Hat 4.4.2-5) (GCC) ) #1 SMP Thu May 19 11:52:32 CST 2011
CPU: ARMv6-compatible processor [410fb025] revision 5 (ARMv7), cr=00c5387f
CPU: VIPT nonaliasing data cache, VIPT nonaliasing instruction cache
Machine: Oxsemi NAS
1 memory region
Ignoring unrecognised tag 0x00000000
Memory policy: ECC disabled, Data cache writealloc
Built 1 zonelists in Zone order, mobility grouping on. Total pages: 65024
Kernel command line: root=ubi0:rootfs ubi.mtd=2,512 rootfstype=ubifs console=ttyS0,115200 elevator=cfq mac_adr=0x00,0x30,0xe0,0x00,0x00,0x01 mem=256M poweroutage=yes
PID hash table entries: 1024 (order: 10, 4096 bytes)
Dentry cache hash table entries: 32768 (order: 5, 131072 bytes)
Inode-cache hash table entries: 16384 (order: 4, 65536 bytes)
Memory: 256MB = 256MB total
Memory: 253696KB available (5280K code, 311K data, 148K init, 0K highmem)
SLUB: Genslabs=11, HWalign=32, Order=0-3, MinObjects=0, CPUs=2, Nodes=1
Hierarchical RCU implementation.
NR_IRQS:96
OX820_RPS_init_irq: interrupts 64 to 96
Console: colour dummy device 80x30
console [ttyS0] enabled
Calibrating delay loop... 279.34 BogoMIPS (lpj=1396736)
Security Framework initialized
Mount-cache hash table entries: 512
CPU: Testing write buffer coherency: ok
Calibrating local timer... 349.98MHz.
CPU1: Booted secondary processor
Calibrating delay loop... 279.34 BogoMIPS (lpj=1396736)
Brought up 2 CPUs
SMP: Total of 2 processors activated (558.69 BogoMIPS).
NET: Registered protocol family 16
Number of DMA channels = 4, version = 4
Reserving a DMA channel for ODRB
Allocating 645 SRAM generic DMA descriptors
bio: create slab <bio-0> at 0
SCSI subsystem initialized
usbcore: registered new interface driver usbfs
usbcore: registered new interface driver hub
usbcore: registered new device driver usb
cfg80211: Calling CRDA to update world regulatory domain
NET: Registered protocol family 2
Switched to NOHz mode on CPU #0
IP route cache hash table entries: 2048 (order: 1, 8192 bytes)
TCP established hash table entries: 8192 (order: 4, 65536 bytes)
Switched to NOHz mode on CPU #1
TCP bind hash table entries: 8192 (order: 4, 65536 bytes)
TCP: Hash tables configured (established 8192 bind 8192)
TCP reno registered
NET: Registered protocol family 1
Create fragment cache
fuse init (API version 7.12)
SGI XFS with security attributes, large block/inode numbers, no debug enabled
msgmni has been set to 496
alg: No test for stdrng (krng)
io scheduler noop registered
io scheduler anticipatory registered
io scheduler deadline registered
io scheduler cfq registered (default)
Serial: 8250/16550 driver, 2 ports, IRQ sharing disabled
serial8250: ttyS0 at MMIO 0x44200000 (irq = 55) is a 16550A
brd: module loaded
loop: module loaded
ox820sata: OX820 sata core.
scsi0 : oxnassata
scsi1 : oxnassata
ata1: SATA max UDMA/133 irq 50
ata2: SATA max UDMA/133 irq 50
ata1: SATA link down (SStatus 0 SControl 300)
ata2: SATA link down (SStatus 0 SControl 300)
NAND device: Manufacturer ID: 0xad, Chip ID: 0xda (Hynix NAND 256MiB 3,3V 8-bit)
Scanning device for bad blocks
Creating 2 MTD partitions on "NAND 256MiB 3,3V 8-bit":
0x000000000000-0x0000026c0000 : "Boot partition"
0x0000026c0000-0x000010000000 : "Data Partition"
UBI: attaching mtd2 to ubi0
UBI: physical eraseblock size: 131072 bytes (128 KiB)
UBI: logical eraseblock size: 129024 bytes
UBI: smallest flash I/O unit: 2048
UBI: sub-page size: 512
UBI: VID header offset: 512 (aligned 512)
UBI: data offset: 2048
UBI: attached mtd2 to ubi0
UBI: MTD device name: "Data Partition"
UBI: MTD device size: 217 MiB
UBI: number of good PEBs: 1738
UBI: number of bad PEBs: 0
UBI: max. allowed volumes: 128
UBI: wear-leveling threshold: 4096
UBI: number of internal volumes: 1
UBI: number of user volumes: 1
UBI: available PEBs: 0
UBI: total number of reserved PEBs: 1738
UBI: number of PEBs reserved for bad PEB handling: 17
UBI: max/mean erase counter: 3/0
UBI: image sequence number: 1229925112
UBI: background thread "ubi_bgt0d" started, PID 398
Probing for Synopsis GMAC, unit 0
eth0: use mtd hwaddr
eth0: Tuning GMAC 0 RGMII timings
eth0: PHY is Realtek RTL8211D, type 0x001cc914
eth0: GMAC ver = 53, vendor ver = 18 at 0xe1400000, IRQ 40
eth0: Found PHY at address 3, type 0x001cc914 -> 10/100/1000
eth0: Ethernet addr: xx:xx:xx:xx:xx:xx
probe() eth0: Leon x2 clock
tun: Universal TUN/TAP device driver, 1.6
tun: (C) 1999-2004 Max Krasnyansky <maxk@qualcomm.com>
ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
Start USB clocks
oxnas-ehci oxnas-ehci.0: OXNAS EHCI Host Controller
oxnas-ehci oxnas-ehci.0: new USB bus registered, assigned bus number 1
oxnas-ehci oxnas-ehci.0: irq 39, io mem 0x00000000
oxnas-ehci oxnas-ehci.0: USB 0.0 started, EHCI 1.00
usb usb1: configuration #1 chosen from 1 choice
hub 1-0:1.0: USB hub found
hub 1-0:1.0: 2 ports detected
Initializing USB Mass Storage driver...
usbcore: registered new interface driver usb-storage
USB Mass Storage support registered.
mice: PS/2 mouse device common for all mice
IRQ 53 uses trigger mode 0; requested 3
input: gpio-keys as /devices/platform/gpio-keys/input/input0
irq 54: nobody cared (try booting with the "irqpoll" option)
[<c0032bb0>] (unwind_backtrace+0x0/0xe8) from [<c007992c>] (__report_bad_irq+0x74/0xa4)
[<c007992c>] (__report_bad_irq+0x74/0xa4) from [<c0079adc>] (note_interrupt+0x180/0x1ec)
[<c0079adc>] (note_interrupt+0x180/0x1ec) from [<c007a484>] (handle_level_irq+0x100/0x128)
[<c007a484>] (handle_level_irq+0x100/0x128) from [<c002d058>] (asm_do_IRQ+0x58/0xac)
[<c002d058>] (asm_do_IRQ+0x58/0xac) from [<c002dbf8>] (__irq_svc+0x38/0xc0)
Exception stack(0xcf813b48 to 0xcf813b90)
3b40: cf813b90 ffff8bf2 0000000a 00000000 00000000 00000102
3b60: cf812000 c0570040 00000000 c05a3f20 c00258b8 c0570040 00000000 cf813b90
3b80: c00539fc c0053894 20000113 ffffffff
[<c002dbf8>] (__irq_svc+0x38/0xc0) from [<c0053894>] (__do_softirq+0x58/0x140)
[<c0053894>] (__do_softirq+0x58/0x140) from [<c00539fc>] (irq_exit+0x80/0x9c)
[<c00539fc>] (irq_exit+0x80/0x9c) from [<c002d05c>] (asm_do_IRQ+0x5c/0xac)
[<c002d05c>] (asm_do_IRQ+0x5c/0xac) from [<c002dbf8>] (__irq_svc+0x38/0xc0)
Exception stack(0xcf813bf0 to 0xcf813c38)
3be0: 00000000 60000013 e500001c 00000000
3c00: c0575474 c05aafc8 00000029 c05aae80 00000000 00000000 60000013 00000000
3c20: 00000000 cf813c38 c0037d00 c025d4d4 20000013 ffffffff
[<c002dbf8>] (__irq_svc+0x38/0xc0) from [<c025d4d4>] (gpio_direction_output+0xcc/0xec)
[<c025d4d4>] (gpio_direction_output+0xcc/0xec) from [<c02ee358>] (i2c_start+0x18/0x44)
[<c02ee358>] (i2c_start+0x18/0x44) from [<c02ee9e4>] (bit_xfer+0x24/0x488)
[<c02ee9e4>] (bit_xfer+0x24/0x488) from [<c02ec5e4>] (i2c_transfer+0xb0/0xf0)
[<c02ec5e4>] (i2c_transfer+0xb0/0xf0) from [<c02ec8a0>] (i2c_smbus_xfer+0x27c/0x544)
[<c02ec8a0>] (i2c_smbus_xfer+0x27c/0x544) from [<c02ecc08>] (i2c_smbus_read_i2c_block_data+0x4c/0x70)
[<c02ecc08>] (i2c_smbus_read_i2c_block_data+0x4c/0x70) from [<c03f31b4>] (ds1307_probe+0x354/0x5fc)
[<c03f31b4>] (ds1307_probe+0x354/0x5fc) from [<c02ec3d4>] (i2c_device_probe+0x98/0xb0)
[<c02ec3d4>] (i2c_device_probe+0x98/0xb0) from [<c027ffb0>] (driver_probe_device+0x78/0x164)
[<c027ffb0>] (driver_probe_device+0x78/0x164) from [<c027f5d4>] (bus_for_each_drv+0x60/0x8c)
[<c027f5d4>] (bus_for_each_drv+0x60/0x8c) from [<c02801ec>] (device_attach+0x5c/0x74)
[<c02801ec>] (device_attach+0x5c/0x74) from [<c027f3e8>] (bus_probe_device+0x24/0x44)
[<c027f3e8>] (bus_probe_device+0x24/0x44) from [<c027df88>] (device_add+0x3f0/0x4d8)
[<c027df88>] (device_add+0x3f0/0x4d8) from [<c02ed604>] (i2c_new_device+0xbc/0x124)
[<c02ed604>] (i2c_new_device+0xbc/0x124) from [<c02ee064>] (i2c_register_adapter+0x124/0x1c4)
[<c02ee064>] (i2c_register_adapter+0x124/0x1c4) from [<c02ee1b4>] (i2c_add_numbered_adapter+0xb0/0xc8)
[<c02ee1b4>] (i2c_add_numbered_adapter+0xb0/0xc8) from [<c03f35d4>] (i2c_gpio_probe+0x178/0x22c)
[<c03f35d4>] (i2c_gpio_probe+0x178/0x22c) from [<c0280d98>] (platform_drv_probe+0x18/0x1c)
[<c0280d98>] (platform_drv_probe+0x18/0x1c) from [<c027ffb0>] (driver_probe_device+0x78/0x164)
[<c027ffb0>] (driver_probe_device+0x78/0x164) from [<c0280128>] (__driver_attach+0x8c/0x90)
[<c0280128>] (__driver_attach+0x8c/0x90) from [<c027f8a4>] (bus_for_each_dev+0x60/0x8c)
[<c027f8a4>] (bus_for_each_dev+0x60/0x8c) from [<c027f17c>] (bus_add_driver+0x9c/0x230)
[<c027f17c>] (bus_add_driver+0x9c/0x230) from [<c02803bc>] (driver_register+0x78/0x138)
[<c02803bc>] (driver_register+0x78/0x138) from [<c001d3d0>] (i2c_gpio_init+0xc/0x30)
[<c001d3d0>] (i2c_gpio_init+0xc/0x30) from [<c002d4bc>] (do_one_initcall+0x30/0x1b4)
[<c002d4bc>] (do_one_initcall+0x30/0x1b4) from [<c0008554>] (kernel_init+0x164/0x1f0)
[<c0008554>] (kernel_init+0x164/0x1f0) from [<c002eac0>] (kernel_thread_exit+0x0/0x8)
handlers:
[<c02e97f4>] (gpio_keys_isr+0x0/0x8c)
Disabling IRQ #54
rtc-ds1307 0-0068: rtc core: registered m41t00 as rtc0
i2c-gpio i2c-gpio.0: using pins 41 (SDA) and 42 (SCL)
md: linear personality registered for level -1
md: raid0 personality registered for level 0
md: raid1 personality registered for level 1
Registered led device: hddaerr
Registered led device: hddberr
Registered led device: system
Registered led device: firmware
Registered led device: usbcopy
TCP cubic registered
NET: Registered protocol family 10
NET: Registered protocol family 17
RPC: Registered udp transport module.
RPC: Registered tcp transport module.
rtc-ds1307 0-0068: setting system clock to 2012-01-27 08:09:55 UTC (1327651795)
md: Waiting for all devices to be available before autodetect
md: If you don't use raid, use raid=noautodetect
md: Autodetecting RAID arrays.
md: Scanned 0 and added 0 devices.
md: autorun ...
md: ... autorun DONE.
UBIFS: mounted UBI device 0, volume 0, name "rootfs"
UBIFS: file system size: 217921536 bytes (212814 KiB, 207 MiB, 1689 LEBs)
UBIFS: journal size: 9033728 bytes (8822 KiB, 8 MiB, 71 LEBs)
UBIFS: media format: w4/r0 (latest is w4/r0)
UBIFS: default compressor: lzo
UBIFS: reserved for root: 0 bytes (0 KiB)
VFS: Mounted root (ubifs filesystem) on device 0:10.
Freeing init memory: 148K
Welcome to Fedora
Press 'I' to enter interactive startup.
Starting udev: [ OK ]
Setting hostname isharing: [ OK ]
Checking filesystems
Checking all file systems.
[ OK ]
Mounting local filesystems: ntfs-3g: Failed to access volume '/dev/sda2': No such file or directory
ntfs-3g 2009.4.4 integrated FUSE 27 - Third Generation NTFS Driver
Copyright (C) 2005-2007 Yura Pakhuchiy
Copyright (C) 2006-2009 Szabolcs Szakacsits
Copyright (C) 2007-2009 Jean-Pierre Andre
Copyright (C) 2009 Erik Larsson
Usage: ntfs-3g [-o option[,...]] <device|image_file> <mount_point>
Options: ro (read-only mount), remove_hiberfile, uid=, gid=,
umask=, fmask=, dmask=, streams_interface=.
Please see the details in the manual (type: man ntfs-3g).
Example: ntfs-3g /dev/sda1 /mnt/windows
Ntfs-3g news, support and information: http://ntfs-3g.org
mount: special device /dev/md2 does not exist
[FAILED]
Enabling /etc/fstab swaps: [ OK ]
Entering non-interactive startup
Restoring /var/log to tmpfs:
mount tmpfs on /var/log...
extract backup logs to /var/log...
7 blocks
Bringing up loopback interface: [ OK ]
Bringing up interface eth0:
Determining IP information for eth0... done.
[ OK ]
Starting portreserve: [ OK ]
Starting system logger: [ OK ]
Starting rpcbind: [ OK ]
Starting NFS statd: [ OK ]
Starting RPC idmapd: [ OK ]
Starting system message bus: [ OK ]
Starting Avahi daemon... [ OK ]
Starting cups: [ OK ]
Mounting other filesystems: ntfs-3g: Failed to access volume '/dev/sda2': No such file or directory
ntfs-3g 2009.4.4 integrated FUSE 27 - Third Generation NTFS Driver
Copyright (C) 2005-2007 Yura Pakhuchiy
Copyright (C) 2006-2009 Szabolcs Szakacsits
Copyright (C) 2007-2009 Jean-Pierre Andre
Copyright (C) 2009 Erik Larsson
Usage: ntfs-3g [-o option[,...]] <device|image_file> <mount_point>
Options: ro (read-only mount), remove_hiberfile, uid=, gid=,
umask=, fmask=, dmask=, streams_interface=.
Please see the details in the manual (type: man ntfs-3g).
Example: ntfs-3g /dev/sda1 /mnt/windows
Ntfs-3g news, support and information: http://ntfs-3g.org
mount: special device /dev/md2 does not exist
[FAILED]
Retrigger failed udev events[ OK ]
Starting sshd: [ OK ]
Starting xinetd: [ OK ]
ntpdate: Synchronizing with time server: [ OK ]
Syncing hardware clock to system time [ OK ]
Starting ntpd: [ OK ]
Starting NAS (nas): fastcgi buttons diskmon
Starting lighttpd: [ OK ]
Starting MiniDLNA (minidlna): [ OK ]
Starting sockproxy-daemon:
[ OK ] atd: [ OK ]
Starting DAAP server: [ OK ]
Starting NAS LED (nasled): product was "akitio"
nas-service
Starting smartd: [ OK ]
Fedora release 12 (Constantine)
Kernel 2.6.31.14-fast-20110422 on an armv6l (/dev/ttyS0)
isharing login:
$ cat /proc/cpuinfo Processor : ARMv6-compatible processor rev 5 (v6l) processor : 0 BogoMIPS : 279.34 processor : 1 BogoMIPS : 279.34 Features : swp half thumb fastmult edsp java CPU implementer : 0x41 CPU architecture: 7 CPU variant : 0x0 CPU part : 0xb02 CPU revision : 5 Hardware : Oxsemi NAS Revision : 0000 Serial : 0000000000000000
$ cat /proc/meminfo MemTotal: 254112 kB MemFree: 152084 kB Buffers: 752 kB Cached: 28808 kB SwapCached: 0 kB Active: 48792 kB Inactive: 15208 kB Active(anon): 34692 kB Inactive(anon): 0 kB Active(file): 14100 kB Inactive(file): 15208 kB Unevictable: 0 kB Mlocked: 0 kB SwapTotal: 0 kB SwapFree: 0 kB Dirty: 0 kB Writeback: 0 kB AnonPages: 34492 kB Mapped: 11500 kB Slab: 7944 kB SReclaimable: 3264 kB SUnreclaim: 4680 kB PageTables: 988 kB NFS_Unstable: 0 kB Bounce: 0 kB WritebackTmp: 0 kB CommitLimit: 127056 kB Committed_AS: 165540 kB VmallocTotal: 8192 kB VmallocUsed: 1172 kB VmallocChunk: 6428 kB
$ cat /proc/mtd dev: size erasesize name mtd0: 10000000 00020000 "NAND 256MiB 3,3V 8-bit" mtd1: 026c0000 00020000 "Boot partition" mtd2: 0d940000 00020000 "Data Partition"
$ uname -a Linux isharing 2.6.31.14-fast-20110422 #1 SMP Thu May 19 11:52:32 CST 2011 armv6l armv6l armv6l GNU/Linux
$ cat /proc/cmdline root=ubi0:rootfs ubi.mtd=2,512 rootfstype=ubifs console=ttyS0,115200 elevator=cfq mac_adr=0x00,0x30,0xe0,0x00,0x00,0x01 mem=256M poweroutage=yes
$ cat /proc/version Linux version 2.6.31.14-fast-20110422 (root@thom) (gcc version 4.4.2 20091019 (Red Hat 4.4.2-5) (GCC) ) #1 SMP Thu May 19 11:52:32 CST 2011
$ /lib/libc.so.6
GNU C Library stable release version 2.11, by Roland McGrath et al.
Copyright (C) 2009 Free Software Foundation, Inc.
This is free software; see the source for copying conditions.
There is NO warranty; not even for MERCHANTABILITY or FITNESS FOR A
PARTICULAR PURPOSE.
Compiled by GNU CC version 4.4.2 20091019 (Red Hat 4.4.2-5).
Compiled on a Linux >>2.6.32-rc3-00337-gbd38193-dirty<< system on 2009-11-11.
Available extensions:
The C stubs add-on version 2.1.2.
crypt add-on version 2.1 by Michael Glad and others
GNU Libidn by Simon Josefsson
Native POSIX Threads Library by Ulrich Drepper et al
Support for some architectures added on, not maintained in glibc core.
BIND-8.2.3-T5B
For bug reporting instructions, please see:
<http://www.gnu.org/software/libc/bugs.html>.
